TUMI LOCKS

Maximize your security

Your new TSA-approved combination padlock is preset to open at 0-0-0 (even though the dials may be positioned at other numbers). You can change and reset your combination as often as you like.

Keep your combination in a safe and accessible place for future reference. This lock was designed to be recognized by the U.S. Transportation Security Administration, TSA, and allows the TSA to be able to unlock your bag, using special access codes and tools, if the need arises for a baggage search. This lock can then be relocked by the TSA with no damage to the lock or your bag.

Lock Name Lock Name

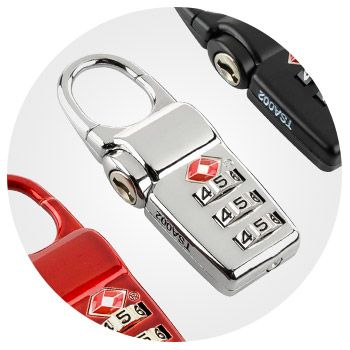

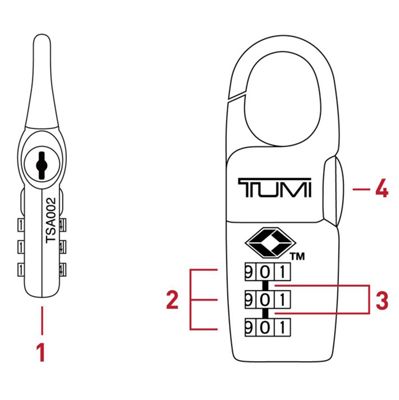

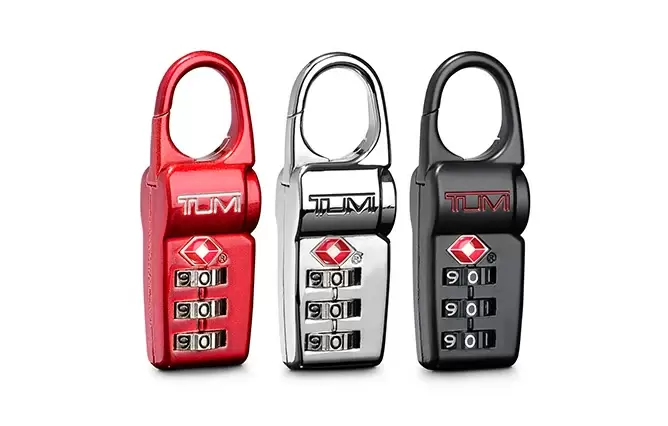

Padlock

Step 1
Start by making sure every digit on your dial is set in the preset starting code at 0-0-0.
Step 2
Apply pressure with a ballpoint pen and push button (1), continuing to hold it as you adjust each number on your 3-digit dial (2).
Step 3
When you have fully secured each number of your code, release your ballpoint pen’s pressure on the button (1) to set your combination.
Step 4
Open the lock by dialing the set combination and pressing down on button. (4)
Lock Name Lock Name

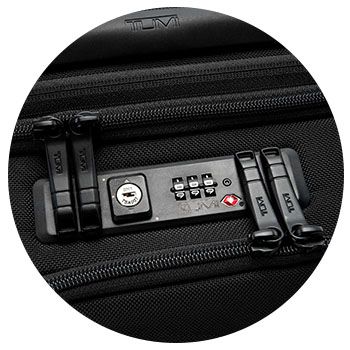

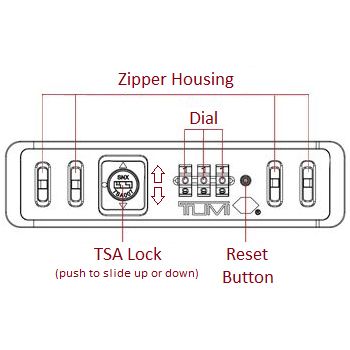

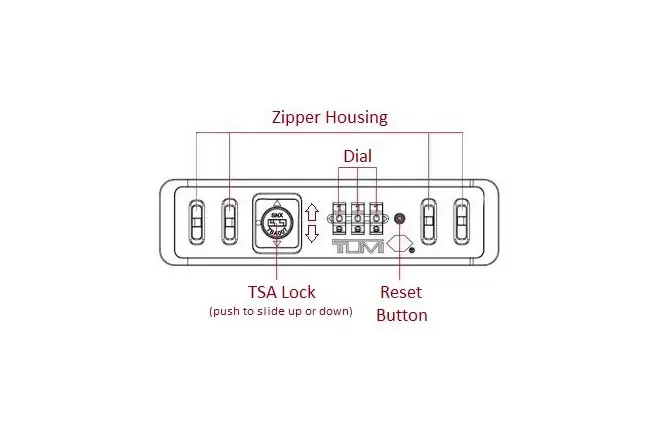

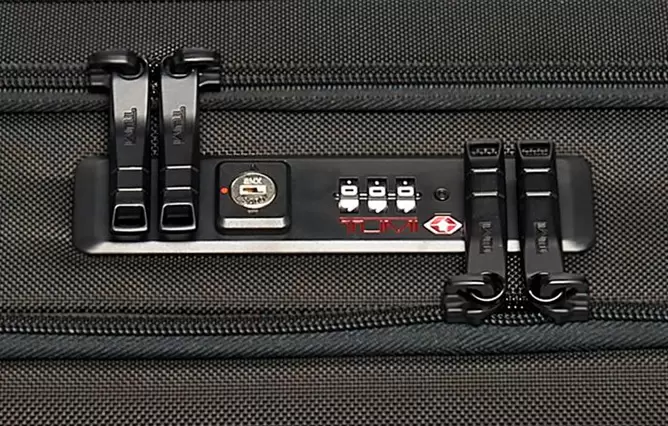

Dual Integrated Lock

Step 1
Start by ensuring your dial is set in the preset starting code 0-0-0 by releasing the zipper pullers from their housing. To do this, slide the TSA Lock as indicated by the arrows to unlock the zippers.
Step 2
Now that the preset code is confirmed, return the zipper pullers into the housing.
Step 3
Use a ballpoint pen to press down the reset button located next to the dial. After pressing down on the reset button, adjust each dial to your preference.
Step 4
When you have finalized of your new code, push to slide the TSA Lock as indicated by the arrows. This causes the reset button to spring up and release the zipper pullers which confirms your new code is set.
Lock Name Lock Name

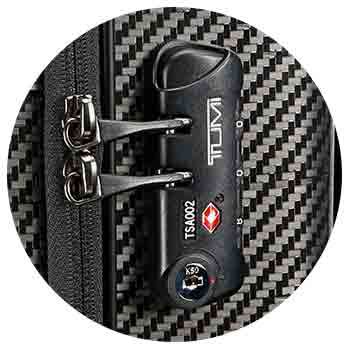

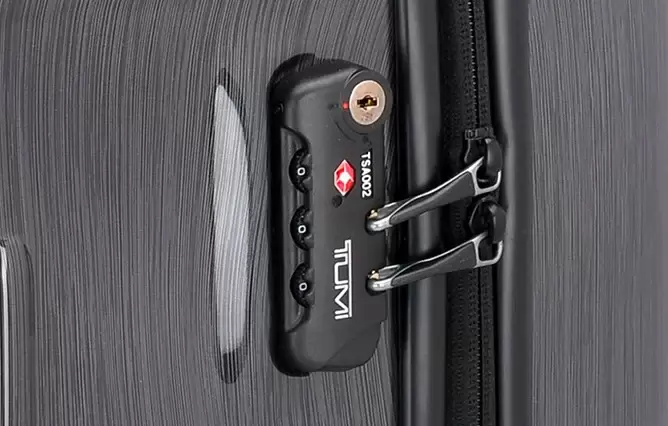

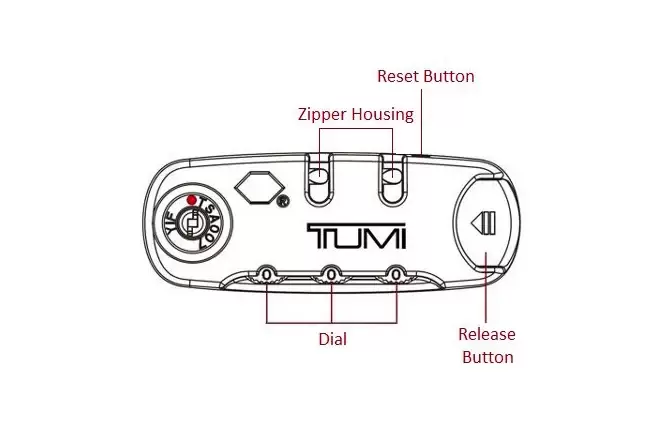

Integrated Lock

Step 1
Start by removing the zipper pulls from the lock and making sure every digit on your dial is set in the preset starting code at 0-0-0.
Step 2
Make sure zipper pulls are securely in place in their housing within the locking mechanism.
Step 3
Apply pressure with a ballpoint pen to the small circular divot at the lower left hand corner of the lock, continuing to hold it as you adjust each number on your 3-digit dial.
Step 4
When you have fully secured each number of your code, you may release your ballpoint pen’s pressure on the lock’s divot hole.
Step 5
Press down on the large release button, located to the right of the TUMI logo. If the zippers pop out from the zipper pull, you have correctly set your lock!
Lock Name Lock Name

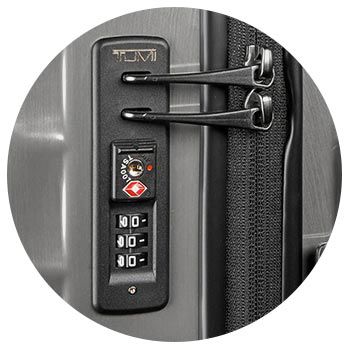

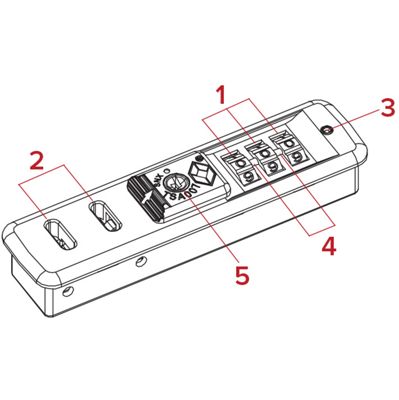

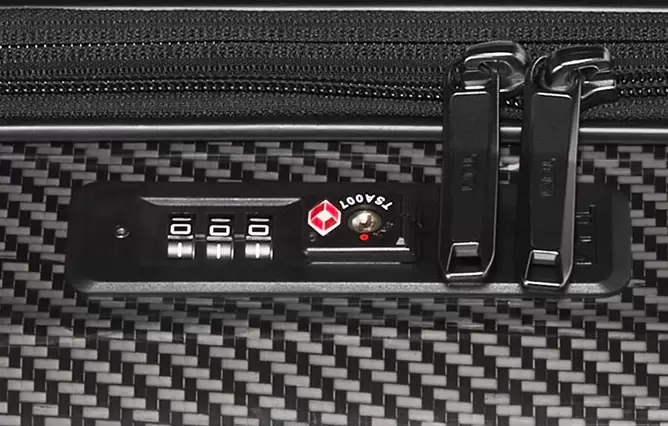

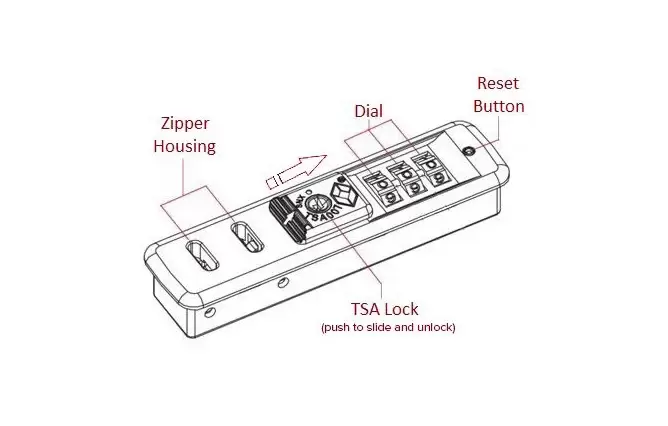

Low Profile Integrated Lock

Step 1
Start by removing the zipper pulls from the lock and making sure every digit on your dial is set in the preset starting code at 0-0-0.
Step 2
Make sure zipper pulls are securely in place in their housing within the locking mechanism.
Step 3
Apply pressure with a ballpoint pen to the small circular divot in the center of the lock, continuing to hold it as you adjust each number on your 3-digit dial.
Step 4
When you have fully secured each number of your code, you may release your ballpoint pen’s pressure on the lock’s divot hole.
Step 5
Push the middle square down to release. Now you have correctly set your lock!
Lock Name Lock Name

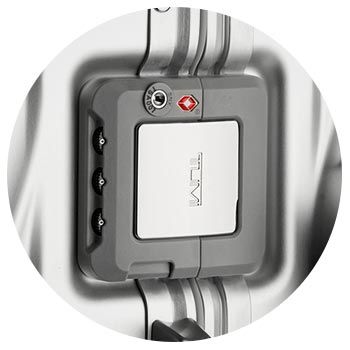

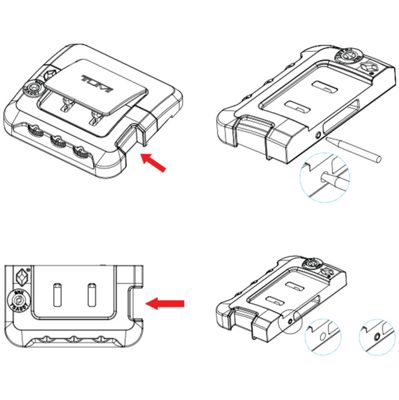

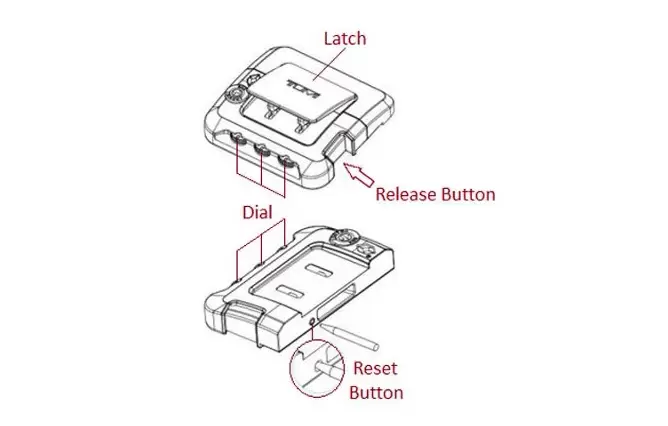

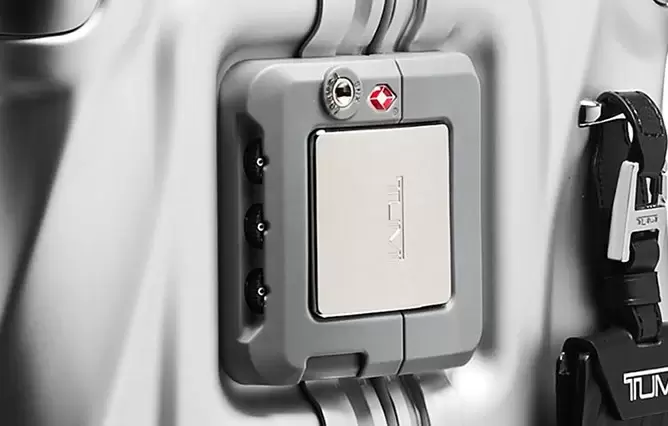

Snap Latch Lock

Step 1
Start by making sure every digit on your dial is set in the preset starting code at 0-0-0. Press the button at side to open the lock.
Step 2
Once lock is open, apply pressure with a ballpoint pen to the reset button, continuing to hold it as you adjust each number on your 3-digit dial.
Step 3
When you have fully secured each number of your code, you may release your ballpoint pen’s pressure to release the reset button. The lock is now set and open to your personal combination.
Lock Name Lock Name

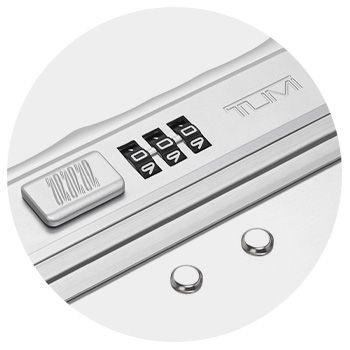

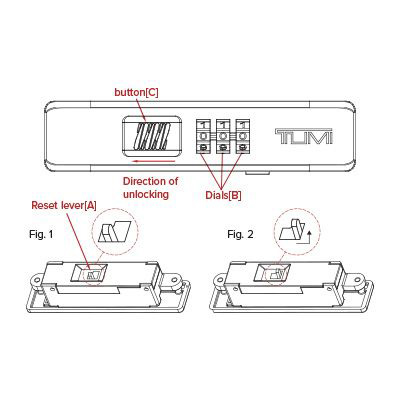

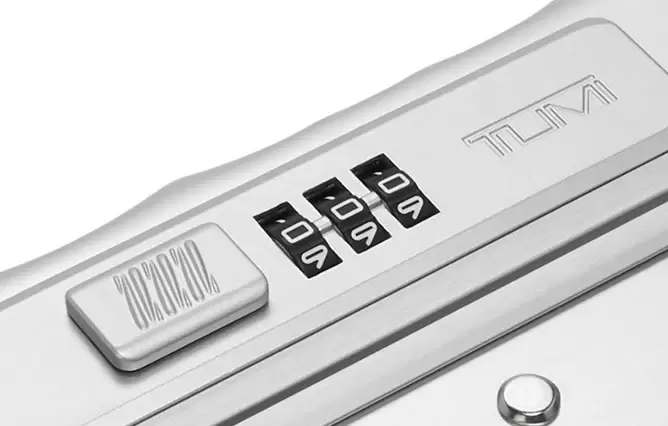

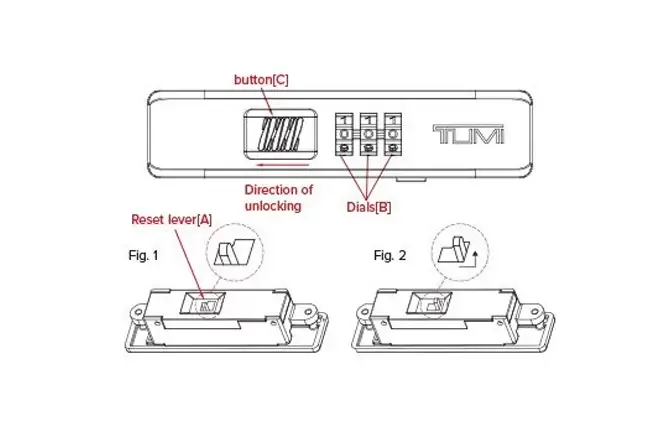

Briefcase Lock

Step 1
Start by ensuring every digit on your dial [B] is set in the preset starting code at 0-0-0.
Step 2
Slide the rectangular button [C] to the left until the briefcase unlocks with a click.
Step 3
Open the briefcase. Locate reset lever [A], which should be positioned to the left. This is the original position. Slide the lever up and to the right. While the briefcase is open, set your personal three-digit code. After, return the lever back to the original position. Your briefcase is now ready for use with the code.
Note
Reset lever [A] must be returned to the original position after selecting the personal three-digit code. The three-digit code is only set after reset lever [A] is in its original position. If the lever is not returned to the original position after setting the code and the briefcase is closed, the code is not set properly and the only way to open the briefcase will be to break the lock. Alternatively, the code can be changed at any time by following the steps listed above.
